Description

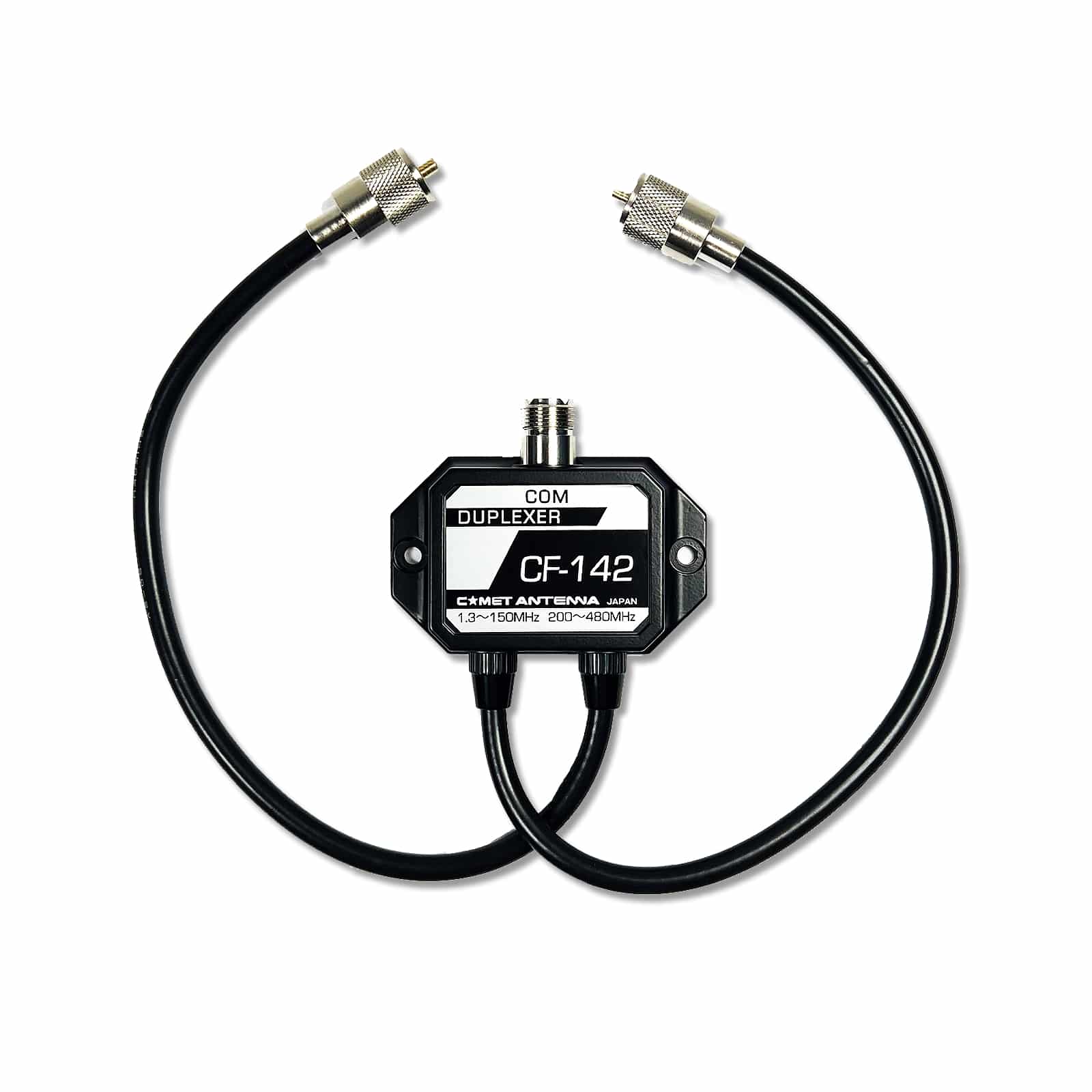

HF-2M/220-440MHz Duplexer
Band Pass Ins Loss Max Power
Low Pass: 1.3-150MHz 0.2dB 600W PEP
High Pass: 200-480MHz 0.3dB 400W PEP
Isolation: 40dB
CONNECTORS:
Common: SO-239
Low pass: PL-259
High pass: PL-259
Duplexer · Duplexers/Triplexers
$80.75
MSRP · dealer pricing availableHF-2M/220-440MHz Duplexer
Band Pass Ins Loss Max Power
Low Pass: 1.3-150MHz 0.2dB 600W PEP
High Pass: 200-480MHz 0.3dB 400W PEP
Isolation: 40dB
CONNECTORS:
Common: SO-239
Low pass: PL-259
High pass: PL-259
CF-416CComet - CF-416C - 1.3-170MHz-350-1400MHz Duplexer w-Leads$65.75Read more
CF-413BComet - CF-413B - 1.3-460MHz-840-1.4GHz Duplexer w-Leads$76.25Read more
CF-530Comet - CF-530 - 1.3-90MHz-125-470MHz Duplexer w-Leads$91.25Read more
CF-706Comet - CF-706 - 1.3-90MHz-75-470MHz Duplexer w-Leads$104.50Read moreSupport · Dealers · Quotes
