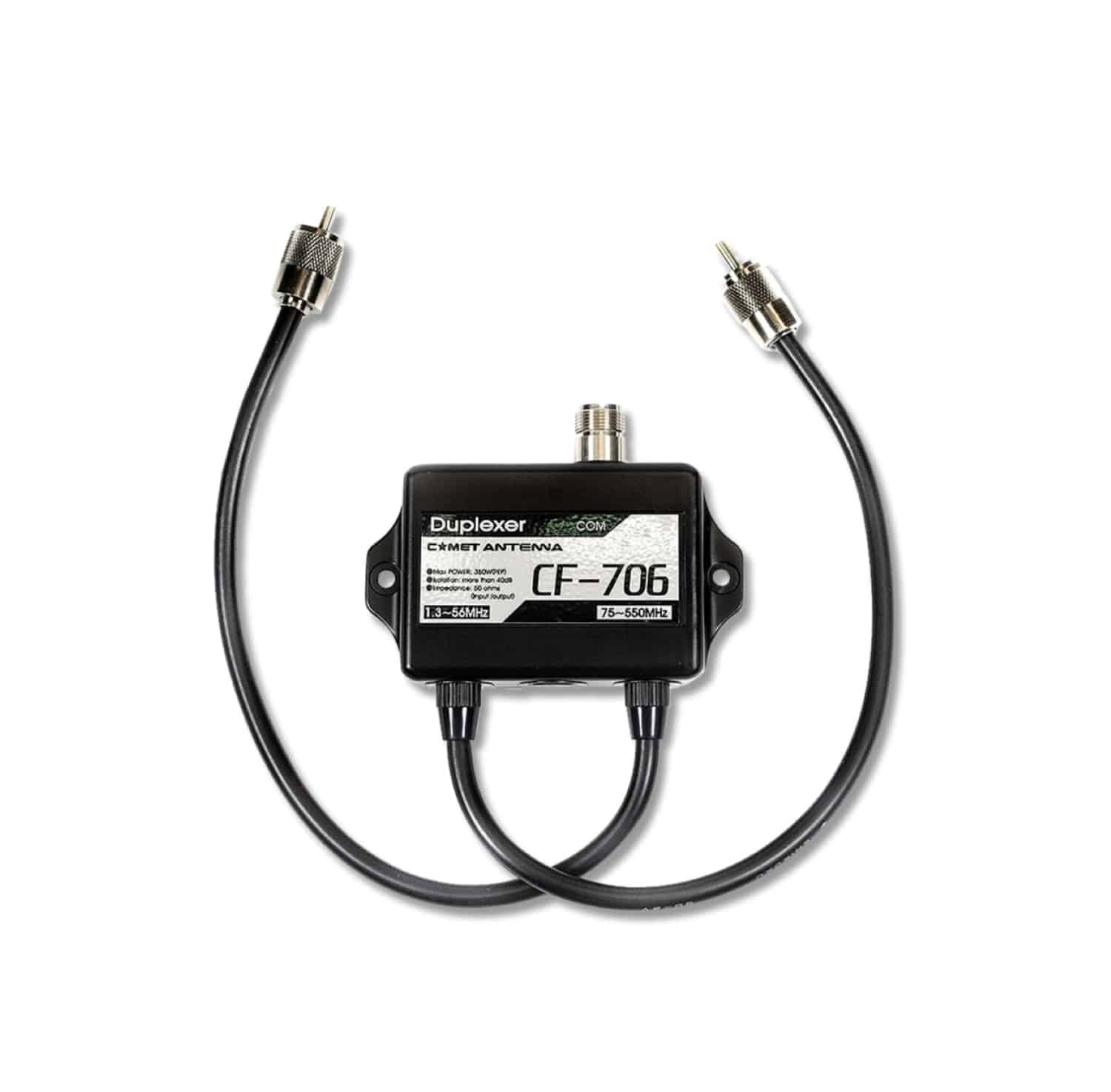

Comet – CF-706 – 1.3-90MHz-75-470MHz Duplexer w-Leads

Description

HF-6M/2M-440MHz duplexer for the IC-706/MKII/G, FT-100, etc..

To match the RX freq range of the IC-706MKII/G the CF-706A was engineered to pass the commercial FM band of 88-108MHz.

                       Band Pass      Ins. Loss      Max Power
Low Pass:    1.3-57MHz          0.4dB             350w PEP
High Pass:   75-550MHz          0.4dB             350w PEP

Isolation: 40dB minimum

CONNECTORS:
Common: SO-239
Low pass: PL-259
High Pass: PL-259
