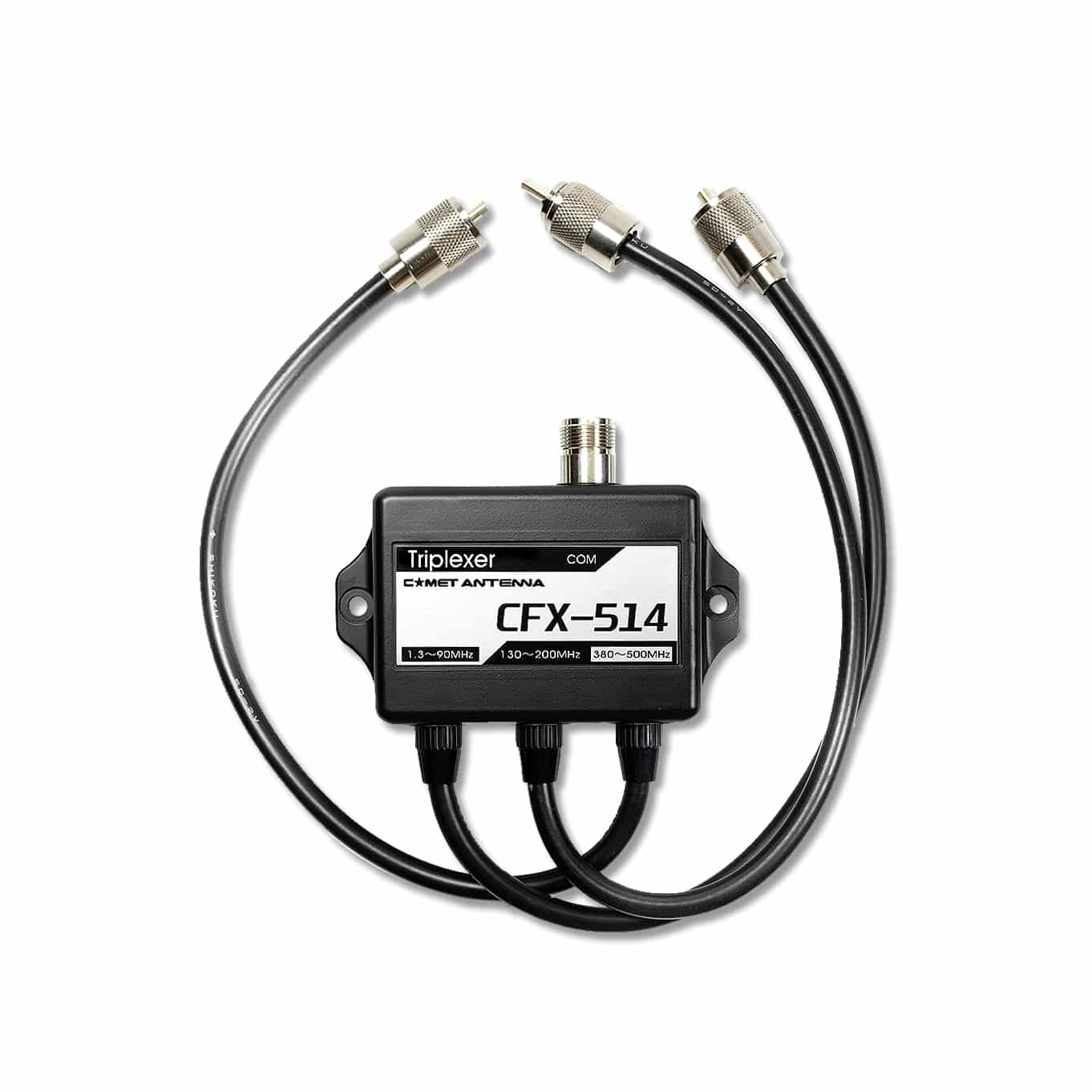

Comet – CFX-514 – 1.3-90-130-200-380-500MHz w-Leads

Description

HF-6M/2M/440MHz Triplexer

Frequency Range  Loss    Max Power
1.3-90MHz                 0.2dB     800w PEP
130-200MHz           0.25dB    800w PEP
380-500MHz            0.3dB     500w PEP

Isolation: 55dB

CONNECTORS:

Common:  SO-239
Low In:  PL-259 with coax lead
Mid Pass: PL-259 with coax lead
High Pass  PL-259 with coax lead

There are several other HF-6M/2M/440MHz triplexers with different coax connector combinations

CFX-514N: Same as CFX-514, but has an N-Conn on 440MHz
CFX-5140: Same as CFX-514, but without coax leads
